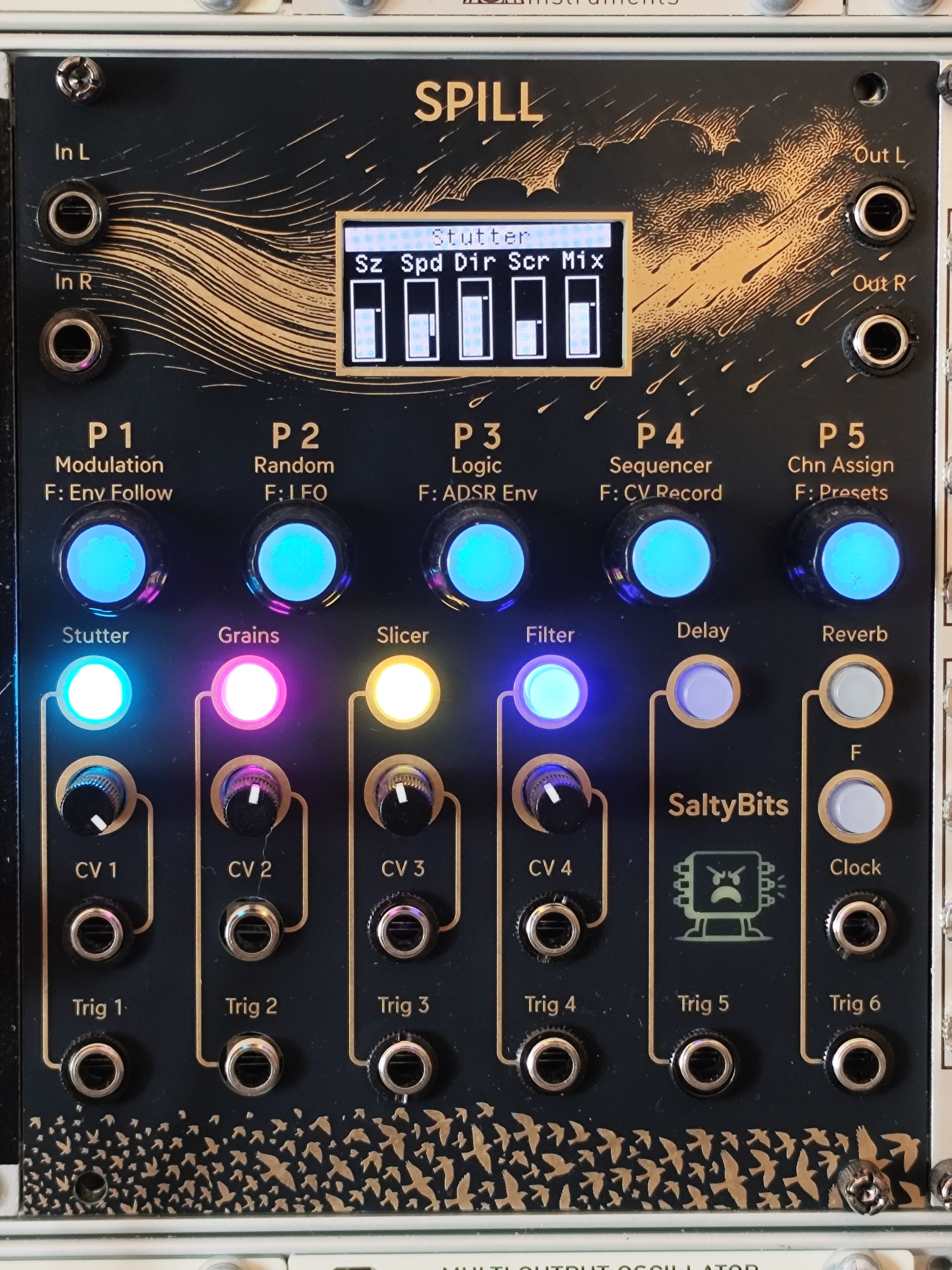

SPILL

Daisy Seed Instrument — DIY Kit, All Through-Hole

SPILL is a hands-on instrument powered by Electrosmith's Daisy Seed 64MB. You receive a kit — all through-hole components, faceplate, and pre-programmed brain. No SMD soldering needed (already done). Solder the big stuff, flash the firmware, and you have a unique hardware instrument ready to make noise.

🧠 Daisy Seed — ARM Cortex-M7

🔊 24-bit / 96kHz audio codec

🔌 USB-C — power + flash

🛠️ DIY Kit — THD only, SMD presoldered

⚡ Flasher — firmware updates

🎛️ MIDI — in/out/USB

Buy Kit Flasher Tool ↓

What's In The Box

Kit Contents

Everything you need to build SPILL. All through-hole — you bring the soldering iron.

🧠

Daisy Seed 64MB × 1 ARM Cortex-M7, 64MB SDRAM — pre-programmed

🎛️

RGB Encoders × 5 Rotary encoders with RGB LED ring

🔘

Encoder Caps × 5 Matching knob caps for encoders

🎚️

Potentiometers (CV) × 4 For CV control voltage inputs

🔌

Audio Jacks × 17 3.5mm mono — all ins, outs & CV

📟

OLED Display × 1 Parameter feedback & menu navigation

📐

Faceplate × 1 Pre-cut panel with labeled jacks & knobs

🔗

Cables & Connectors All ribbon cables, headers & pin connectors

🔩

Screws & Hardware Standoffs, nuts, mounting hardware

All THD (through-hole) components — no SMD soldering needed.
SMD parts come presoldered on the PCB. You only solder the big stuff.

Firmware

SPILL Flasher Tool

Update your SPILL's Daisy Seed firmware with our desktop flasher. New features, bug fixes, and sound engines — one click to flash.

How Flashing Works

Connect your SPILL via USB-C, launch the flasher tool, and select a firmware version. The tool handles DFU mode and writes the new firmware directly to the Daisy Seed.

1 Connect SPILL via USB-C. Hold the BOOT button while plugging in to enter DFU mode.

2 Open the SPILL Flasher tool. It detects your device automatically.

3 Select a firmware version from the dropdown (or load a local .bin file).

4 Click "Flash". Wait for the progress bar to complete. SPILL reboots with new firmware.

Download Flasher Tool

SPILL Flasher v1.0

$ detecting device...
✓ Daisy Seed found (DFU mode)
→ Firmware: spill_v1.2.0.bin
$ flashing... ████████░░ 80%
✓ Flash complete! Rebooting...
✓ SPILL v1.2.0 running

Register Your SPILL

After building your kit, register it in your user profile to receive firmware updates and warranty support.

Go to Profile →
